This filament features excellent properties: Odor Neutral processing, Styrene free formulation, FDA food contact compliance, BPA (Bisphenol A ) free formulation.
Approx. length on spool is 247 meters.
High Glass Temp. (Tg = 85°C)
Good dimensional accuracy and stability
Low odor / Styrene Free solution
Easy processing on many platforms
High attractive glossy surface
Excellent diameter tolerance
ColorFabb uses sophisticated and highly precise laser measuring systems to check the diameter of the filament in real time during the actual production process. It’s measured over 1000 times per second and this helps guarantee that each spool of filament is produced within tolerance. We can guarantee 0.05mm +/- for our 1.75mm diameter filament, which means you can be rest assured that your printer is extruding the exact amount of material called for.
Climate Controlled Warehouse
STACKER warehouses its filaments in a climate controlled room to protect them heat and moisture which can degrade the life and performance of some filaments.
In-house testing
ColorFabb filaments have been rigorously tested at both STACKER and colorFabb facilities on Stacker 3D printers, and this ensures the best results possible. The colorFabb test lab features a wide range of popular 3D printers, including several STACKER 3D printers. They are continuously testing on 3D printers to ensure the filament is performing in real world situations. If you’re not sure how to print with our materials on your 3D printer, please contact us at support@colorfabb.com or info@stacker3d.com.
Material science
ColorFabb was founded as a brand of Helian Polymers, a sister company of Peter Holland which have been active in the master batch and additives for the plastics processing industry. Both companies eat sleep and dream about 3D printing, and our passion drives us to create the best user experience possible.
[/fusion_tab]
[fusion_tab title=”Tips & Tricks” icon=””]
colorFabb nGen
Suggested printing temperature:
230° to 245°C‡
Suggested print speed:
40 – 70 mm/s
Suggested heated bed temperature. We recommend our custom BuildTak or glue stick.
50° – 70°C
General Tips
Build platform
nGen compound performs best on a heated build platform.
Cooling Fans
The layer bonding with nGen is best when no cooling fans are used.
‡3D printers have lots of different types of hot-end which makes it extremely difficult to give universal temperature advice. We feel our temperature advice holds for most 3D printers, but should be considered as a starting point for you to find the temperatures that work in you setup. Don’t be afraid to go either higher or lower than our advised temperatures if you feel your set-up needs this. Please refer back to your printer’s operating manual for safety and temperature specifics.

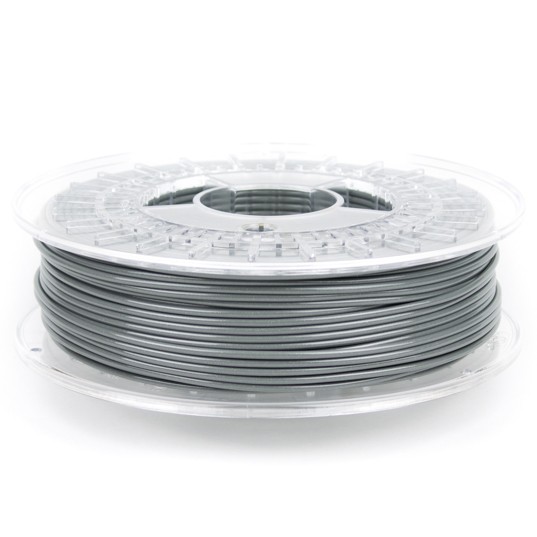

[/fusion_tab] [fusion_tab title=”Specifications” icon=””] Spool Size – 750g (1.65lbs)Outer Diameter: 200mm
Thickness: 70mm
Inner Diameter: 53mm
Box Size
200x200x70mm
Tech Downloads
For technical data and MSDS sheets please follow this link:
http://colorfabb.com/Materials/
